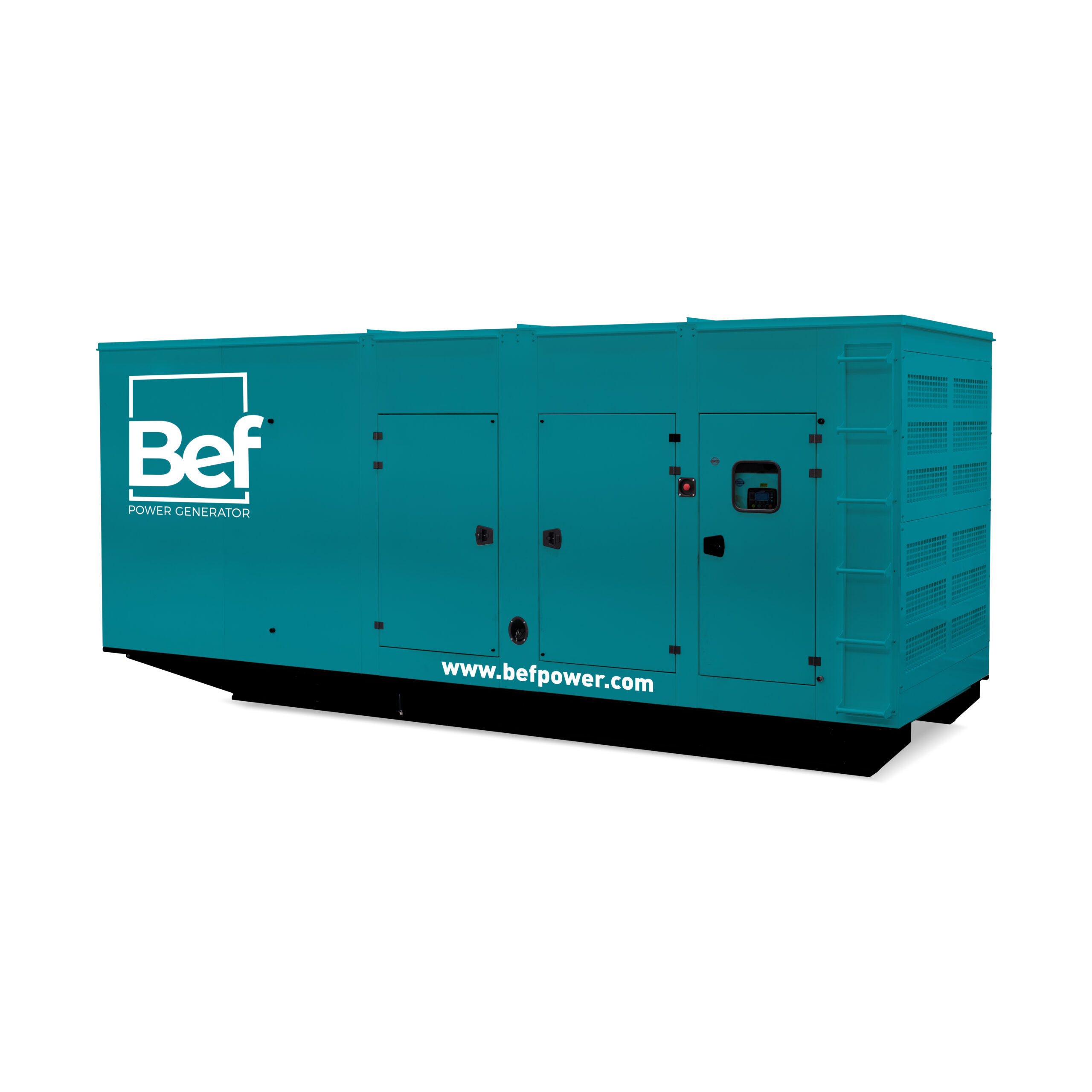

Description
Generator
| Prime Power | 500 kVA |
| Prime Power | 400 kW |
| Standby Power | 550 kVA |
| Standby Power | 440 kW |
| Standard Voltage | 400/236 V |
| Revolutions per Minute | 1500 rpm |
| Power Factor | 0,8 |
Engine
| Brand | DOOSAN |
| Engine Model | DP158LD |
| Power | 494/672 kW |
| Revolutions per Minute | 1500 rpm |
| Cylinder Volume | 14,618 |
| Number and Type of Cylinders | 8 Cylinder – V type |
| Bore x Stroke | 128X142 mm |
| Compression Ratio | 15:1 |
| Governor Type | Electronic |
| Ventilation System | Turbo CAC |
| Injection System | Direct |
| Cooling Type | Water |
| Electrical System | 24 V |
| Oil Capacity | 22 L |
| Cooling Capacity | 79 L |
| Fuel Tank Capacity | 790 L |
| Maximum Exhaust Temperature | 536 °C |
| Exhaust Gas Flow | 98 |
| Max. Allowable Exhaust Back Pressure | 5,9 kPa |
| Cooling Fan Flow | 700 m³/min |
| Fuel Consumption at 50% Load | 55,1 L/h |
| 75% Fuel Consumption at Load | 83,4 L/h |
| 100% Fuel Consumption at Load | 115,1 L/h |
Alternator
| Number of Phases | 3 |
| Power Factor | 0,8 |
| Number of Bearings | Single |
| Number of Poles | 4 |
| Number of Terminal Ends | 6-12 |
| Insulation Class | H |
| Protection Class | IP23 |
| Warning System | AVR |
Dimensions
| Without canopy | |
|---|---|
| Width x Length x Height | 1650X3300X1567 mm |
| Fuel Tank Capacity | 750 L |
| Weight | 3203 kg |
| With canopy | |
| Width x Length x Height | 1650X5200X2280 mm |
| Fuel Tank Capacity | 750 L |
| Weight | 4023 kg |
