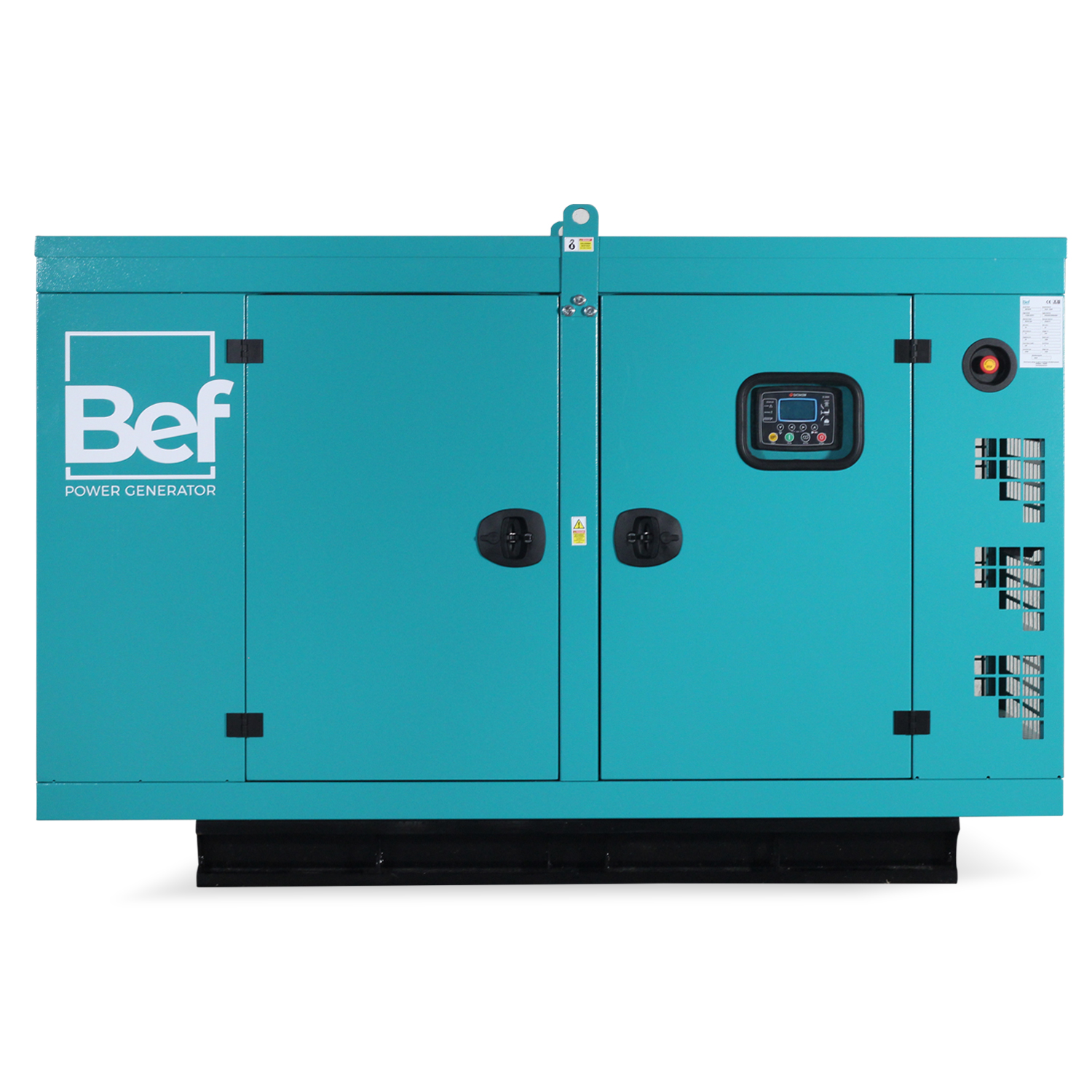

Description
Generator
| Prime Power | 45,0 kVA |
| Prime Power | 36,0 kW |
| Standby Power | 50,0 kVA |
| Standby Power | 40,0 kW |
| Standard Voltage | 400/231 V |
| Revolutions per Minute | 1500 rpm |
| Rated At Power Factor | 0,8 cos φ |
Engine
| Brand | BAUDOUIN |
| Model | 4M06G50-5 |
| Cylinder Configuration | In-Line |
| Number of Cylinders | 4 |
| Cylinder Volume | 2,3 |
| Cylinder Diameter | 89 |
| Cylinder Length | 92 |
| Compression Ratio | 17,5:1 |
| Ventilation Type | Turbo-charged – Aftercooler |
| Governor Type | Electronic |
| Cooling Type | Water |
| Cooling Capacity | 12,9 L |
| Total Oil Capacity | 9,5 L |
| Electrical System (DC) | 12 V |
| Speed/Frequency | 1500/50 rpm |
| Engine Power | 48 kW |
| 110% Fuel Consumption at Load | 11,8 L |
| Fuel Consumption at 100% Load | 10,7 L |
| 75% ESP Fuel Consumption at Load | 7,8 L |
| 50% ESP Fuel Consumption at Load | 5,4 L |
| Exhaust Temperature | 650 °C |
| Exhaust Gas Flow | 9,42 m³/min |
| Combustion Air Flow | 2,7 m³/min |
| Cooling Fan Flow | 102 m³/min |
Alternator
| Number of Phases | 3 |
| Power Factor | 0,8 |
| Number of Bearings | Single |
| Number of Poles | 4 |
| Number of Terminal Ends | 6-12 |
| Insulation Class | H |
| Protection Class | IP23 |
| Warning System | AVR |
Dimensions
| Without canopy | |
|---|---|
| Width x Length x Height | 890X1900X1077 mm |
| Weight | 689 kg |
| Fuel Tank Capacity | 150 L |
| With canopy | |
| Width x Length x Height | 890X2600X1450 mm |
| Weight | 924 kg |
| Fuel Tank Capacity | 150 L |
