Description

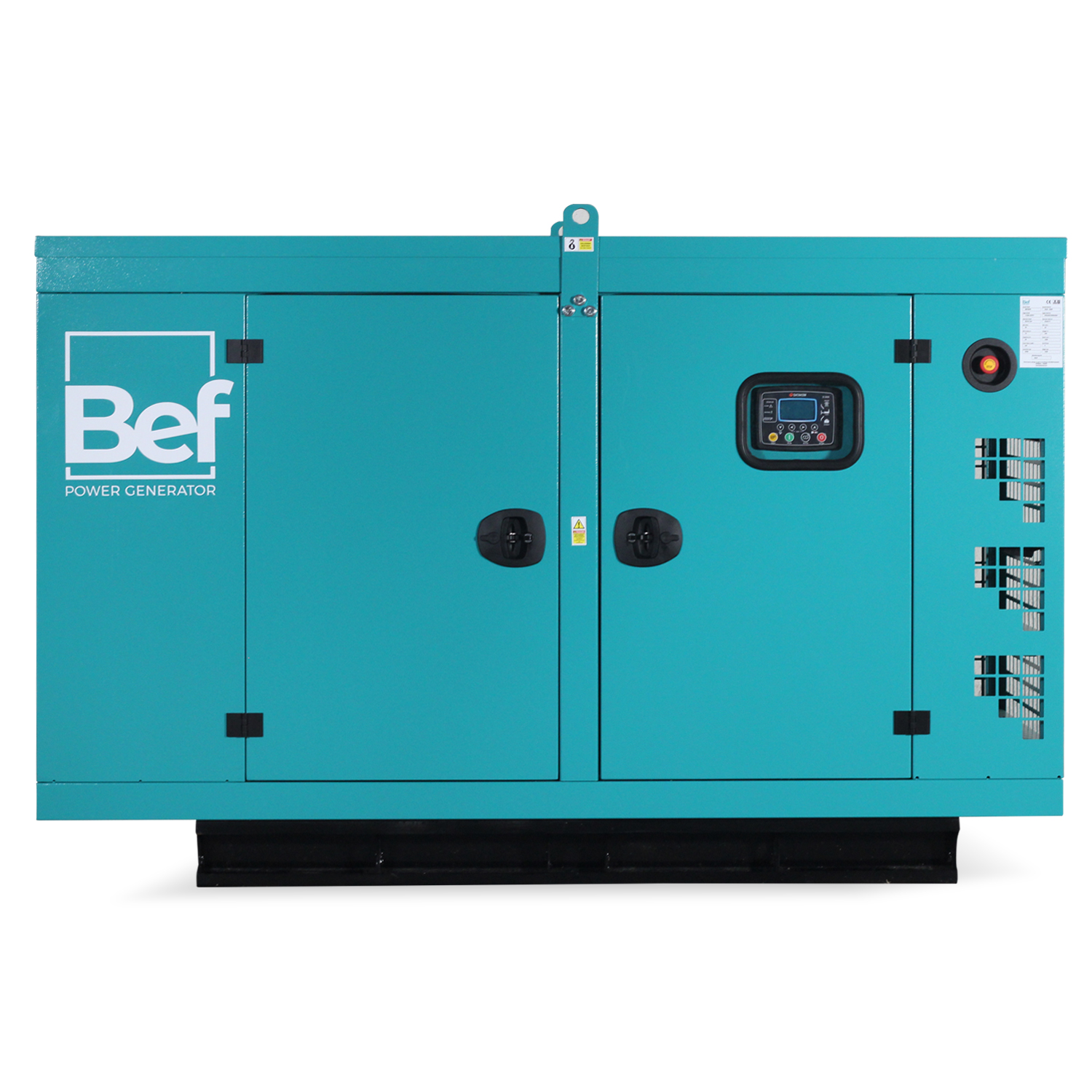

Generator
| Prime Power | 22,5 kVA |
| Prime Power | 18,0 kW |
| Standby Power | 25,0 kVA |
| Standby Power | 20,0 kW |
| Standard Voltage | 400/231 V |
| Revolutions per Minute | 1500 rpm |
| Rated At Power Factor | 0,8 cos φ |
Engine
| Brand | BAUDOUIN |
| Model | 4M06G4D0-S |
| Cylinder Configuration | In-Line |
| Number of Cylinders | 4 |
| Cylinder Volume | 2,3 |
| Cylinder Diameter | 89 |
| Cylinder Length | 92 |
| Compression Ratio | 17,5:1 |
| Ventilation Type | Natural Aspiration |
| Governor Type | Electronic |
| Cooling Type | Water |
| Cooling Capacity | 8,6 L |
| Total Oil Capacity | 9,5 L |
| Electrical System (DC) | 12 V |
| Speed/Frequency | 1500/50 rpm |
| Engine Power | 25 kW |
| 110% Fuel Consumption at Load | 7,1 L |
| Fuel Consumption at 100% Load | 6,1 L |
| 75% ESP Fuel Consumption at Load | 4,5 L |
| 50% ESP Fuel Consumption at Load | 3,2 L |
| Exhaust Temperature | N/A °C |
| Exhaust Gas Flow | 5,32 m³/min |
| Combustion Air Flow | 1,44 m³/min |
| Cooling Fan Flow | 63 m³/min |
Alternator
| Number of Phases | 3 |
| Power Factor | 0,8 |
| Number of Bearings | Single |
| Number of Poles | 4 |
| Number of Terminal Ends | 6-12 |
| Insulation Class | H |
| Protection Class | IP23 |
| Warning System | AVR |
Dimensions
| Without canopy | |
|---|---|
| Width x Length x Height | 830X1600X996 mm |
| Weight | 569 kg |
| Fuel Tank Capacity | 100 L |
| With canopy | |
| Width x Length x Height | 830X2150X1380 mm |
| Weight | 777 kg |
| Fuel Tank Capacity | 100 L |
